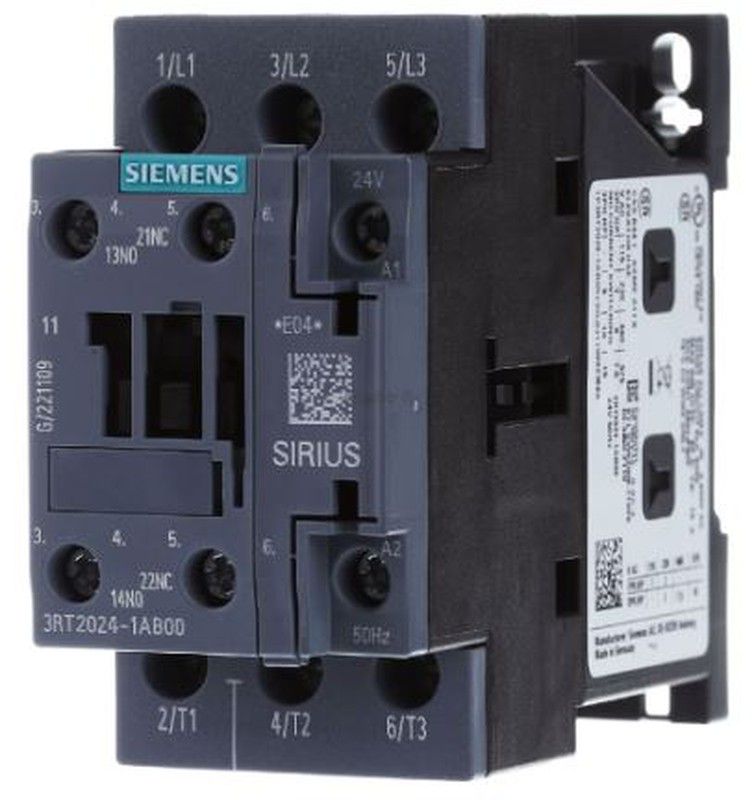

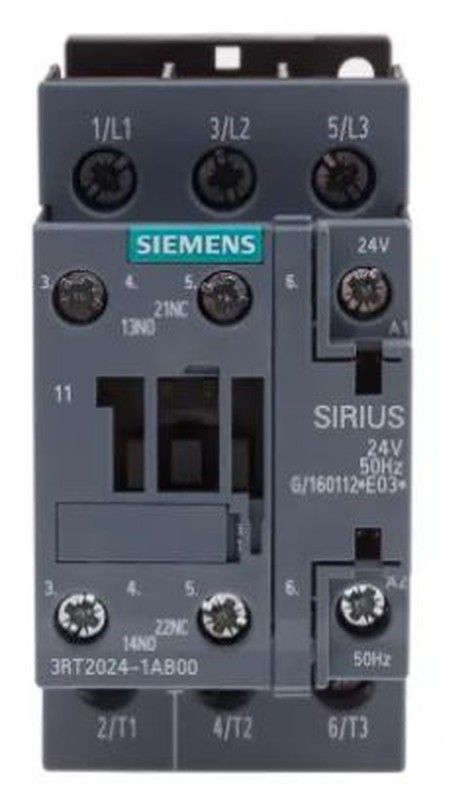

Contactor Ac3 5.5Kw 1Na+1Nc Ca 24V S0 Screw
Brand: Siemens
Reference: 3RT2024-1AB00
Description
Contactor Ac3 5.5Kw 1Na+1Nc Ca 24V S0 Screw. SIRIUS 3RT2 power contactor to control motors. 3RT2 contactors are part of the SIRIUS modular system, made up of products perfectly harmonized with each other. They stand out for their great power that is coupled with a compact format and high contact reliability.
Details
Contactor 5.5kW/400V 1NO+1NC 24V - Magnetic contactor 12A 24VAC 3RT2024-1AB00 – Siemens – 4011209832114: Type of voltage for the AC drive, Nominal service current Ie with AC-1, 400 V 40 A, Current rated duty Ie with AC-3, 400 V 12 A, Rated operating performance with AC-3, 400 V 5.5 kW, Rated operating current Ie with AC-4, 400 V 12.5 A, Rated operating power in AC -4, 400 V 5.5 kW, Rated operating efficiency NEMA 5.51624062 kW, Suitable for series installation yes, Number of auxiliary contacts as NO contacts 1, Number of auxiliary contacts as NC contacts 1, Connection type main circuit Screw connection, Number of NO contacts as main contacts 3.
