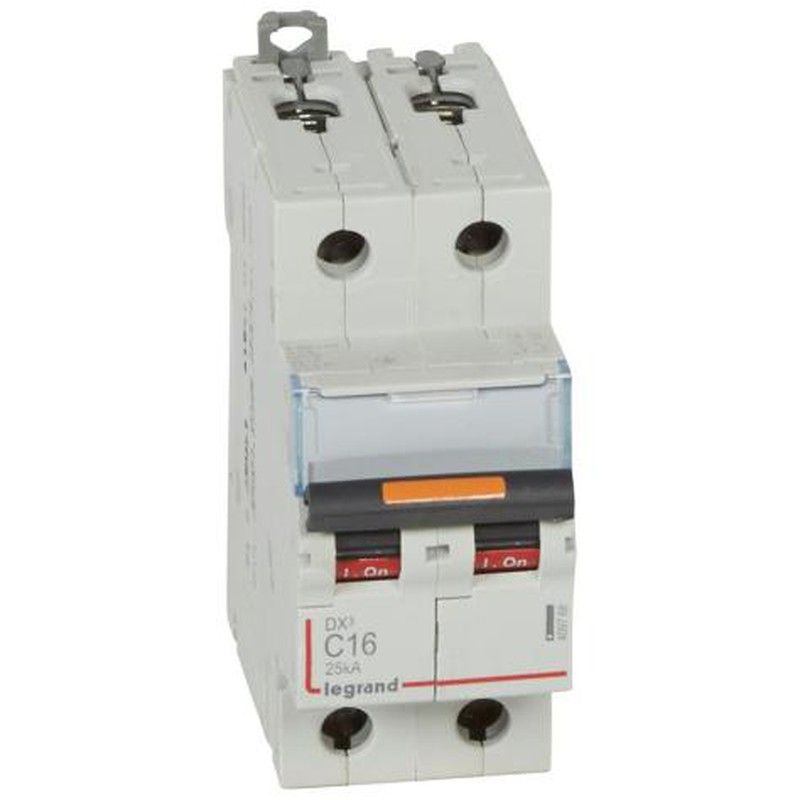

Magneto-thermal switch to protect installations Dx3 25Ka-C 2P 16A.
Brand: Legrand
Reference: 409768
Description
Dx3 25Ka-C 2P 16A magneto-thermal switch to protect electrical installations against overloads and short circuits. It can also be used to control and isolate the installation.
Details
Overview
Magneto-thermal switch to protect electrical installations against overloads and short circuits.
It can also be used to control and isolate the installation.
Description
DX3 25KA-C 2-pole 16A magneto-thermal circuit breaker. Bipolar 230/400 V~ - Curve C - Nominal intensity: 16A - Number of modules: 2. MCB DX³ - 25 kA - magneto-thermal circuit breakers - curve C - output protection - Breaking capacity: 25 kA - UNE-EN 60947 -2 - 400 V~ - Auxiliary and all motorized controls are supported - Connection: upper input and lower output via screw terminals - The 2P/3P and 4P automatic devices are associated with the adaptable differential blocks.
