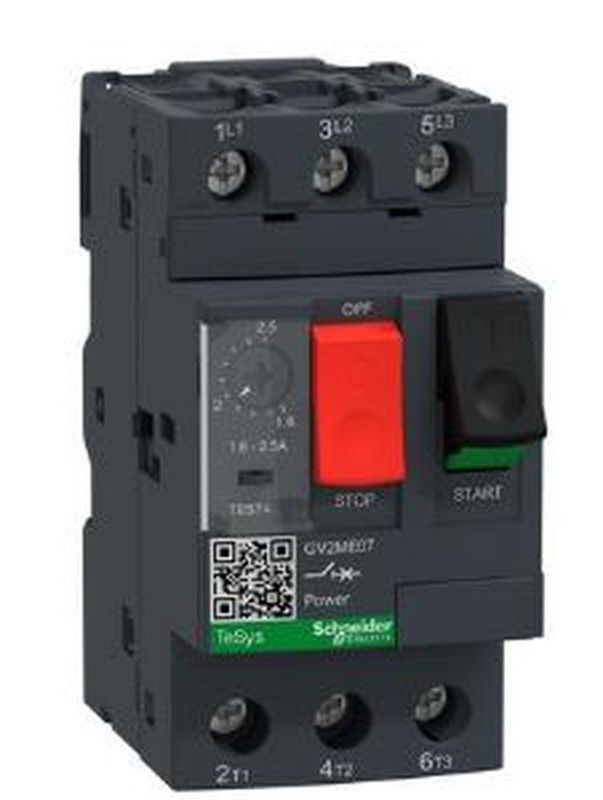

Magnetothermal Circuit Breaker 1.6-2.5A 50-60Hz

Magneto-thermal circuit breaker 1.6.2.5 A TeSys GV2 screw connection. GV2ME device short name. Motor device application. Number of poles: 3P. AC network type. Use category AC-3 in accordance with IEC 60947-4-1 Category A in accordance with IEC 60947-2.

Assigned frequency of use: 50/60 Hz in accordance with IEC 60947-4-1. Breaking capacity 3 kA Icu at 690 V AC 50/60 Hz in accordance with IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz in accordance with IEC 60947-2 100 kA Icu at 230/240 V AC 50/ 60 Hz in accordance with IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz in accordance with IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz in accordance with IEC 60947-2. [Ics] rated short-circuit breaking capacity 100% at 230/240 V AC 50/60 Hz in accordance with IEC 60947-2 100 % in 440 V AC 50/60 Hz in accordance with IEC 60947-2 100 % in 500 VAC 50/60 Hz according to IEC 60947-2 75% at 690 VAC 50/60 Hz according to IEC 60947-2 100% at 400/415 VAC 50/60 Hz according to IEC 60947-2 .

Trip unit caliber 1.6.2.5 A. Thermal-magnetic trip unit technology. Magnetic trip intensity 33.5 A. Benefits: Total protection concentrated in a single product. Compact and easy to select, TeSys GV2 motor circuit breakers are only 45mm wide and are divided according to their level of features and functions: control type, breaking capacity, motor protection and accessories. Applications: Industry, infrastructure, buildings, etc. Control and protection of motors, in accordance with IEC 947-2 and IEC 947-4-1 standards, Easy to insert in any configuration thanks to screw fixation or hooking on mounting profiles.
