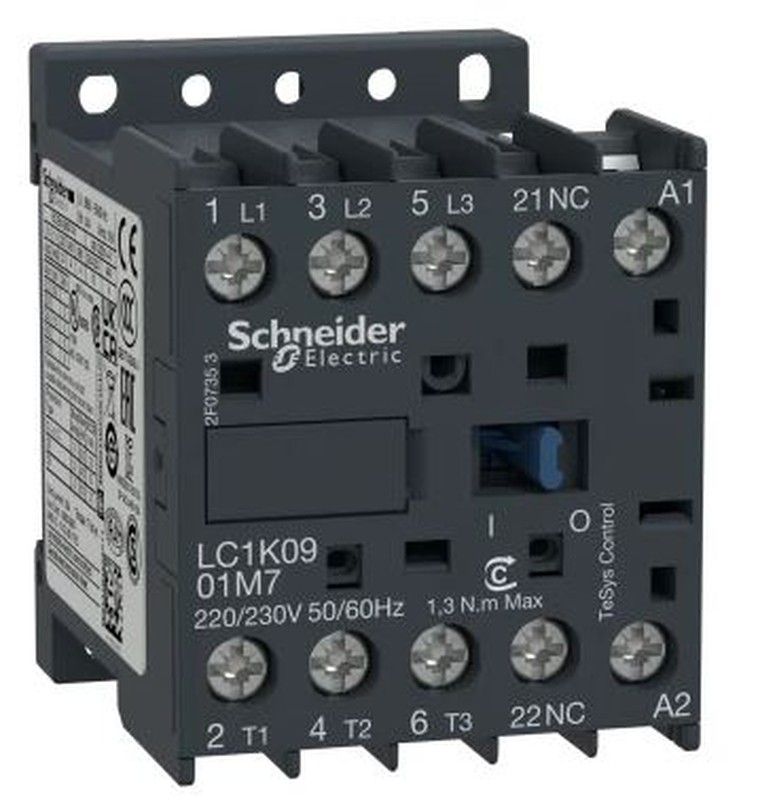

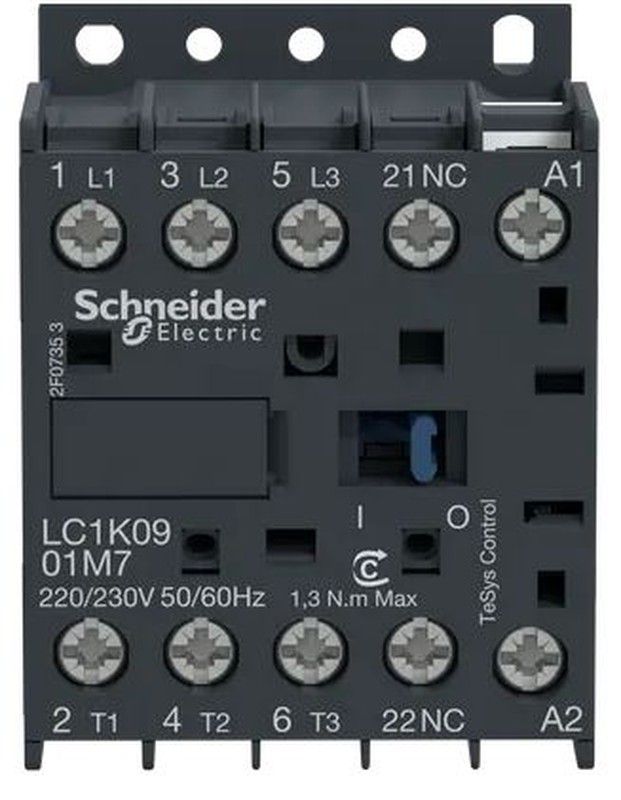

Mini contactor 9A 3P 220V AC 50-60Hz

Brand: Schneider Electric

Reference: LC1K0901M7

Offer: €36.59

PVP: €52.61

Product sold out, not available at this time.

Description

Mini contactor 9A 3P 220V AC 50-60Hz. TeSys K 3-pole (3 NO) contactor for motor control applications up to 9 A/690 V AC-3 (4 kW at 400 V) and non-inductive load control applications up to 20 A/690 V AC- 1.

Details

More information

It provides a 220 V AC coil at 50/60 Hz, integrated 1 NC auxiliary contact, with connection via screw terminals. Provides reliability and durability in standard applications with switching speeds up to 600 cycles/hour and environments with a maximum temperature of 50°C. Very compact (45 mm wide), DIN rail mounting or screw fixing. Certified by various standards (IEC, UL, CSA, CCC, EAC), it complies with the Green Premium standard (RoHS/REACh).
