Split Inverter Set Bz Cs-Bz50Zke + Cu-Bz50Zke R32 Panasonic
Brand: Panasonic
Reference: KIT-BZ50-ZKE
Description
Split air conditioning 1×1 Panasonic KIT-BZ50-ZKE, split type air. Super-compact BZ series. Includes remote control. 4,300 frigories.
Features
- refrigerators:
- 4000-4500
- Energy efficiency:
- B
Details
Split air conditioning 1×1 Panasonic KIT-BZ50-ZKE, split type air. Super-compact BZ series. Includes remote control. 4,300 frigories.
Nominal cooling power
5.0 kW/h – 4,300 frigories/h
Nominal heating power
5.4 kW/h – 4,644 calories/h
Refrigerant gas
R-32
Refrigerating capacity (nominal) kW 5.00
Refrigerating capacity (min.) kW 0.98
Refrigerating capacity (max.) kW 5.40
EER (nominal) (1) W/W 3.03
EER (min.) (1) W/W 3.92
EER (max.) (1) W/W 2.90
SEER (2) 6.50 A++
Pdesign (cooling) kW 5
Power absorbed
cooling (nominal) kW 1.65
Power absorbed
cooling (min.) kW 0.25
Power absorbed
cooling (max.) kW 1.86
Annual energy consumption
refrigeration (3) kWh/a 269
Heating capacity (nominal) kW 5.40
Heating capacity (min.) kW 0.98
Heating capacity (max.) kW 7.50
Heating capacity at -7 °C kW 4.62
COP (nominal) (1) W/W 3.42
COP (min.) (1) W/W 4.67
COP (max.) (1) W/W 3.09
SCOP (2) 4.20 A+
Pdesign at -10 °C kW 4
Power absorbed
heating (nominal) kW 1.58
Power absorbed
heating (min.) kW 0.21
Power absorbed
heating (max.) kW 2.43
Annual energy consumption
heating (3) kWh/a 1,333
Indoor unit CS-BZ50ZKE
Internal power supply V 230
Recommended internal fuse A 16
Internal connection inside/outside mm² 4 x 2.5
Indoor air flow (cold) m³/min 12.5
Interior air flow (heat) m³/min 13.2
Volume of moisture removed L/h 2.8
Interior acoustic pressure (cold - Al)
(4) dB(A) 44
Interior acoustic pressure (cold - Al)
(4) dB(A) 44
Interior acoustic pressure (cold -
Ba) (4) dB(A) 37
Interior acoustic pressure (cold -
Ba-Silen) (4) dB(A) 34
Interior acoustic pressure (heat -
Al) (4) dB(A) 44
Interior acoustic pressure (heat -
Ba) (4) dB(A) 37
Interior acoustic pressure (heat -
Ba-Silen) (4) dB(A) 34
Interior dimensions (height) mm 290
Unit dimensions
inner (width) mm 779
Unit dimensions
inner (depth) mm 209
Net weight indoor unit kg 8

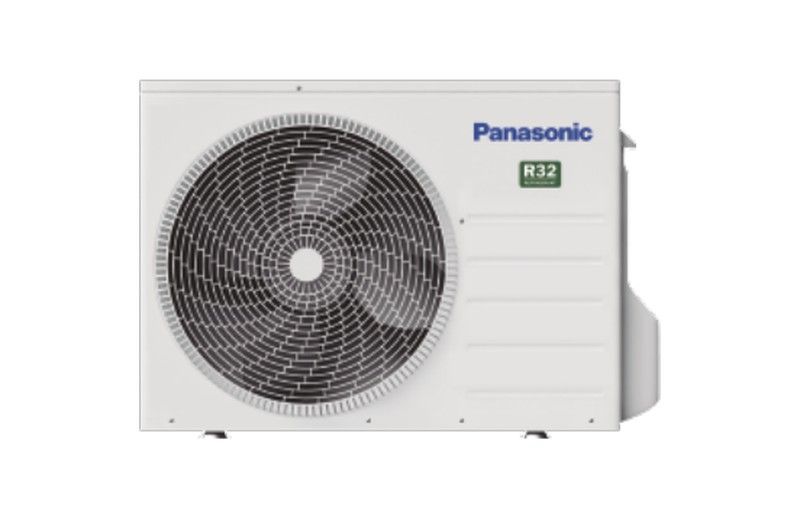

Outdoor unit CU-BZ50ZKE
Ultra-compact BZ · R32
5.00 kW
Outdoor air flow (cold) m³/min 32.7
Outdoor air flow (heat) m³/min 32.7
Exterior acoustic pressure (cold -
Al) (4) dB(A) 48
Exterior acoustic pressure (cold -
Al) (4) dB(A) 48
External acoustic pressure (heat -
Al) (4) dB(A) 49
Unit dimensions
exterior (height) (5) mm 619
Unit dimensions
outer (width) (5) mm 824
Unit dimensions
outer (depth) (5) mm 299
Net weight outdoor unit kg 35
Pipe diameter (liquid) Inch (mm) 1/4 (6.35)
Pipe diameter (gas) Inch (mm) 1/2 (12.70)
Pipe length range m 3 ~ 15
Unevenness (int./ext.) (6) m 15
Length of gas pipe
additional m 10
Additional amount of gas g/m 15
Refrigerant (R32) / CO2 eq. kg/T 1.07/0.72
Operating range (cold -
min.) °C -10
Operating range (cold -
min.) °C -10
Operating range (cold -
max.) °C +43
Operating range (heat -
min.) °C -15
Operating range (heat -
max.) °C +24
