Brand: Cabel
Reference: TSV20SLIM150

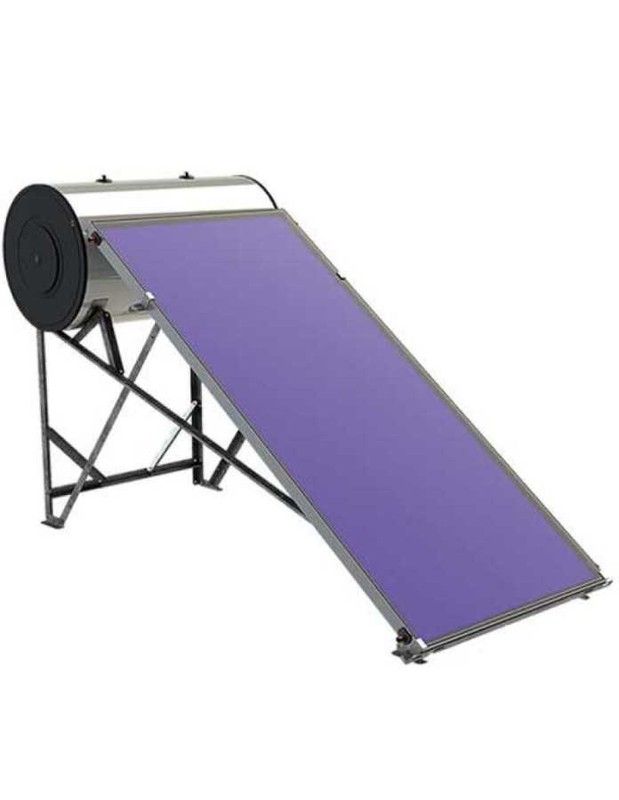

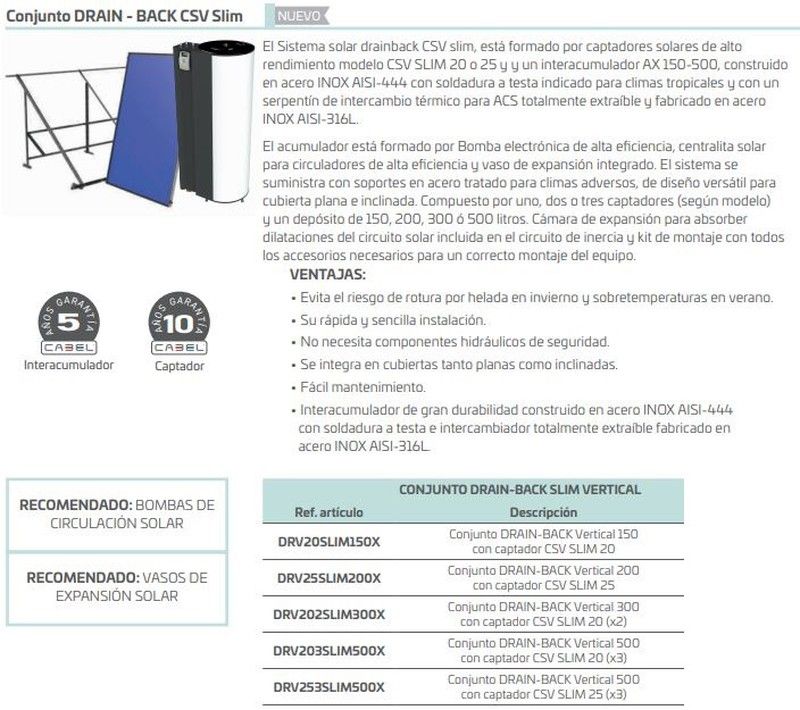

The CSV slim drainback solar system is made up of high-density solar collectors. model CSV SLIM 20 or 25 performance and an AX 150-500 interaccumulator, built in AISI-444 stainless steel with butt welding indicated for tropical climates and with a heat exchange coil for DHW fully removable and made of steel AISI-316L STAINLESS STEEL.
The accumulator is made up of a high-efficiency electronic pump, solar control unit
For high-efficiency circulators and integrated expansion vessel. The system will
It is supplied with steel supports treated for adverse climates, with a versatile design for
Flat and sloped roof. Composed of one, two or three collectors
and a 150 tank. Expansion chamber to absorb
expansion of the solar circuit included in the inertia circuit and assembly kit with all
The necessary accessories for a correct assembly of the equipment.
ACCESSORY KIT:
• Sambra stopper 18
• 1/2" nipple
• 1/2" key
• 3, 8 and 9 bar safety valves
• T 1/2 "H
• 1/2" check valve
• 3/4 "silicone gasket
• Marseille fitting 1/2" M - 3/4" F
• Multi-piece
• Sambra 18 union sleeves
ADVANTAGES:
• Avoids the risk of breakage due to frost in winter and overheating in summer.
• Its quick and easy installation.
• No need for hydraulic safety components.
• It integrates into both flat and sloped roofs.
• Easy maintenance.
• Highly durable cylinder built in AISI-444 INOX steel
with butt welding and fully removable exchanger made of
AISI-316L stainless steel.
The Accumulator has a weight of 40Kg plus the plate.
Su empresa hace el montaje, en su caso importe total con montaje incluido
Hola, para este tipo de aparatos no, estamos lanzando la opción para instalación de termos electricos y aires acondicionados en Barcelona, Madrid y Valencia. Este servicio estará disponible a partir de Febrero.
Gracias y un saludo!
El termosifon es de pression se conecta directement Al la acometida de 3kg de presion
Hola Robert, te he pasado la ficha técnica del producto por correo electrónico.
Saludos!
